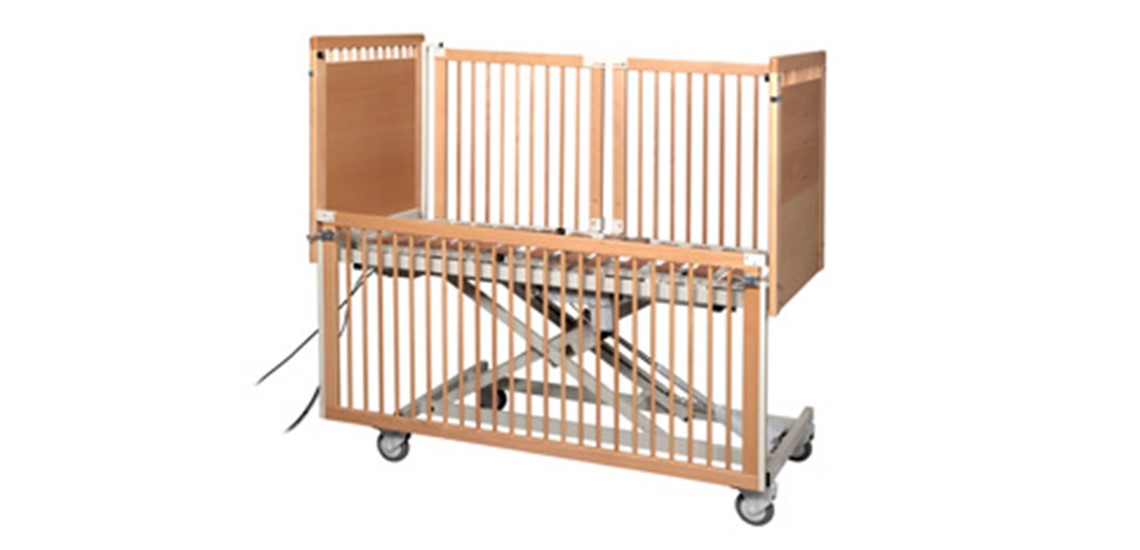

QIDDYBED- a cot from Comfort System

QIDDYBED

Function

ADJUSTMENT
Mattress comes with electrically adjustable height back section and manually height-adjustable footrest. The bedfunctions are controlled from a single control unit. These functions can be blocked (off) to avoid inappropriate use of bed features (security reasons).

GATES
The bed can be equipped with sliding lattice doors or full height adjustable lattice site. Can be mounted on right or left side. As standard bed with a pair of sliding doors and a full height-adjustable side. Also available with slatsreplaced with plexiglass.



SURFACE TREATMENT
Bed's metal parts are powder coated.

LYING SURFACE
The bed lying surface layer consists of glued, resilient wooden battens (6 layers) with the foil surface. Wood slatsare mounted on flexible rubber sleeves, made of aging resistant rubber mixture.

CLEANING
All surfaces can be cleaned with normally occurring cleaning agents and disinfectants.

ELECTRONICS AND ENGINES
Comfort Qvintett powered by a low-volt system, 24 V, Low voltage motors with integrated limit switches for gentlerstarting and stopping, protection class IP 66.

Electronics unit includes built-in transformer, 220V/24V, and electronic protection against overload, protection classIP 54 (optional IP 66). Back Motor is only pushing to eliminate the risk of crushing the backs.

NOISE
Max noise = 47 dB

NORM
CE marked according to Nordic standard/EN1970

ITEM
QB201 Sidewalls 80 cm high
QB202 Fully adjustable side 80 cm high
QB203 Windows that doors 80 inches high
QB204 Fully adjustable side 80 cm, PLEXIGLAS
QB205 Windows that doors 80 cm, PLEXIGLAS

MEASUREMENTS



Inside dimensions (cm)

160x70
Exterior dimensions (cm) 165x82

Interior height of the mattress (7cm)
to the top of the gate

ca 65 cm
External height of door/gate ca 80 cm
Working range from max to min height ca 50 cm
Lifting capacity, SWL 195-235 kg



WEIGHT
Mattress = ca 30 kg
Headboard (pair) = ca 23 kg
Doors (pairs) = ca 8 kg
Full side = ca 8 kg
