MULTI BABY CHANGING TABLE- when you think of your back

MULTIBORDET

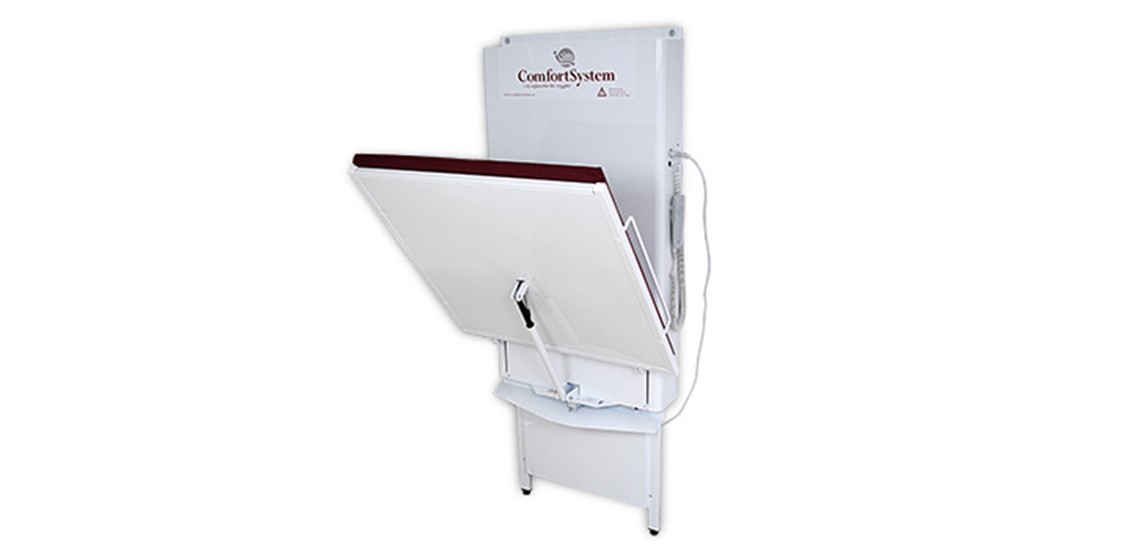

Multi is an electrically adjustable changing tables for different applications in different environments. The baby is lifted from floor level to the correct height for example, health care, diapering, dressing and undressing. Movement to and from the table is facilitated when the child has the opportunity to crawl onand off. It eliminates the heavy lifting, you decide the working height to suit you. The desktop work surfaceis easy to fold up with the help of gas springs. Changing table takes up little space when not in use.

Function

HEIGHT ADJUSTABLE
MULTI is an electric height-adjustable changing tables with a minimum height of 30 cm.

HINGED
When the table is not used, the disc can easily be folded up to save space. A gas spring helps to lift the table top!

WASHBENCH
MULTI can be supplemented by REN washbench if you want access to hand-held shower and laundry facilities.

ASSEMBLY
MULTI-TABLE wall mounted. To facilitate installation, a special mounting rail as an option.

MATERIAL
MULTI is made of metal, powder coated. Galon upholstered pad polyetermaterial included.

SAFETY BUFFERS
MULTI is equipped with safety buffers function is activated if anything prevents the table when lowering.

DRIVE SYSTEM
MULTI is is driven by a low voltage system, 24 V. Low voltage motors with inbuilt limit sensors for gentle start and stop, protection class IP X6.

LOAD
Max 50 kg


ACCESSORIES
MULTI can be supplemented with REN washbench containing troughs, mixer taps and hand shower. Made ofstainless steel plates and metal, powder coated.

PRODUCT CODE
CS45 MULTI baby changing table
1190 Mounting Bracket (pair)
8082 REN washbench with mixer tap / hand shower

WORKING LOAD
From about 30 cm to 90 cm.

DIMENSIONS - MULTI CHANGING TABLE
- Work Disc size = ca 80 x 80 cm
- External width = ca 86 cm
- Stand extension from wall plate in the retracted position = 21 cm
- The stand's height on the wall = ca 120 (lowest position) to ca 190 cm (highest position)
- Stand extension from wall plate in the lowered position = ca 103 cm

DIMENSIONS - REN WASHBENCH
- Width = 60 cm
- Depth = 80 cm
- Height = 80 cm
